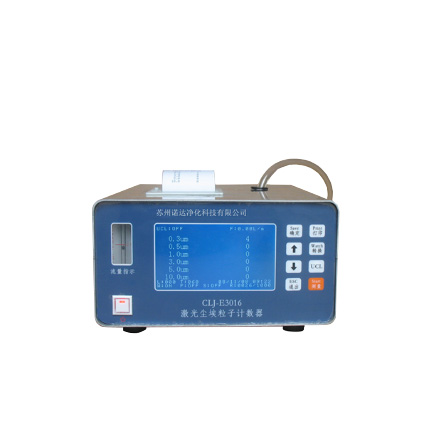

CLJ-E3016 Laster Particle Counter

CLJ-E3016 Laser Particle Counter is designed on the base of light scattering principle of particles, in compliance with standards of FDA-209 (USA) and JGJ171-90 (China), with features of multifunction, standardized data and high accuracy. This product use He-Ne laser as light source, which has features of single wave, energy concentration to make instrument has higher sensitivity.

Features:

1. Use import laser diode and photo diode to guarantee the sensitivity and response speed.
2. Use import micro-pump to stabilize sampling volume and reduce the noise.
3. The key part—light scattering sensor with superior structure, can remove stray light obviously and improve confidence greatly to actualize
    high accurate and reliable measurement.
4. The measurement to confidence is in compliance with standards GB/T6167-2007, JJF1190-2008, distinguish clean class automatically,
    meanwhile comply with standards IS014644-1, JISB9921:1997
5. 1000 groups data storage, data analysis soft as an option
6. Optional humiture measurement accessory
7. Digital display of flow rate
8. Advanced Li-ion battery with 3 hours continual working time

Specification

Model CLJ-E3016
Flow Rate  2.83L/min/0.1cfm
light Source  laser
Pump  Import pump
Display  LCD
Print  Build-in printer
Data Output  RS232
Data Storage  1000
Flow sensor  Electronic
Rh/℃ Optional
Enclosure material  Aluminum Alloy
Power  AC/DC
Weight (Kg) 3.5
Dimensions (mm) 220 x 285 x 140
