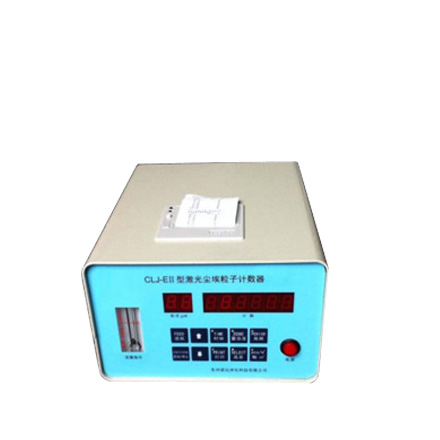

CLJ-EII Particle Counter

CLJ-EⅡ is smaller and lighter than CLJ-E, designed on the base of light scattering principle of particles. It can print measure results directly, distinguish cleanness class automatically and be controlled by micro-PC.

Features:

1. In compliance with requirements of JJF1190-2008 standard
2. particle distribution relative deviation ≤±40%
3. monodisperse particle discrete degree: ≤±30%
4. flow rate (deviation): 2.83L/min (＜±5%)
5. size range: 0.3,0.5,1,3,5,10um (0.3um SNR≥2.5:1)
6. particle concentration limit: ≤30K pcs/L
7. power supply: AC 220V 50Hz

 Specification:

Model CLJ－EⅡ
Flow Rate 2.83L/min/0.1cfm
light Source laser
Pump domestic
Display LED
Print Build-in
Data Output NON
Data Storage NON
Flow sensor Floater
Rh/℃  NON
Enclosure material Aluminum Alloy
Power AC/DC
Weight 3.5kg
Dimensions   210×280×140 (mm)
